IPC-HFW4120E

untitled

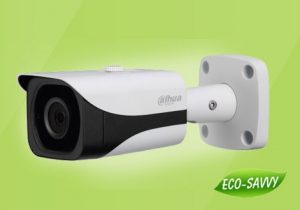

1.3 MP HD Network Small IR Bullet Camera

IPC-HFW4120E

>1/3” 1.3Megapixel progressive scan CMOS
>Support H.264&MJPEG dual codec
>25/30fps@1.3Mp(1280×960)
>Smart Detection supported
>DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (6mm optional)
>Max. IR LEDs Length 40m
>IP67, PoE



Model DH-IPC-HFW4120E
Camera
Image Sensor 1/3” 1.3Megapixel progressive scan CMOS
Effective Pixels 1280(H)x960(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination

0.01Lux/F2.0(Color), 0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

Video Output

N/A

Camera Features
Max. IR LEDs Length 40m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Sunny/Night/Outdoor/Customized
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm (6mm optional)
Max Aperture F2.2(F2.0)
Focus Control Manual
Angle of View H:74°(47°)
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/H.264H/H.264B/MJPEG
Resolution 1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate Main Stream 1.3M/720P(1~25/30fps)
Sub Stream D1/CIF(1~25/30fps)
Third Stream 720P(1~14/7fps)
Bit Rate H.264: 32Kbps~10Mbps
Corridor Mode Support
Audio
Compression N/A
Interface N/A
Smart Function(Optional)
Smart detection Tripwire
Intrusion
Abandoned/Missing
Scene Change
Audio detect
Face detect
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption < 5.5W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Dimensions 70mm×70mm×180mm
Weight 0.4kg(0.528kg with packaging)
